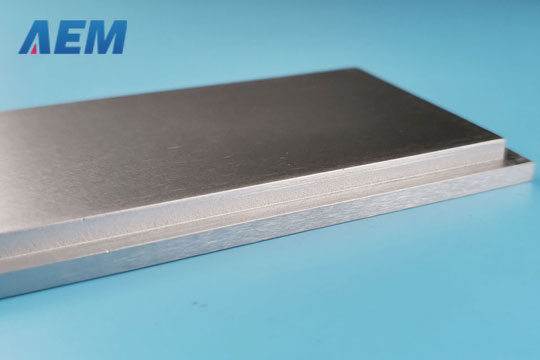

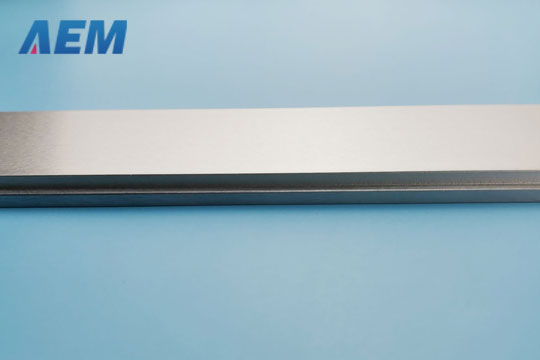

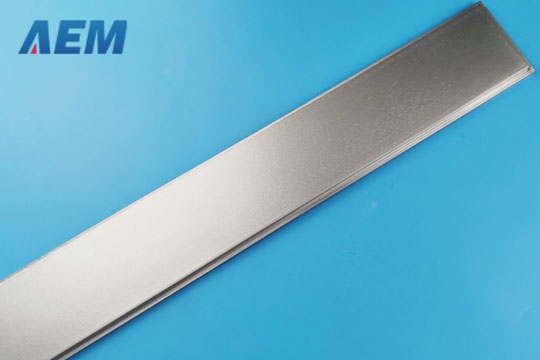

    Chromium Sputtering target
  • Introduction

    Chromium is one of the most popular metals in the world. Chromium is a silvery, lustrous, hard, and brittle metal known for its high mirror polish and corrosion resistance.It is widely used in the automobile industry to form a shiny coating found on wheels and bumpers. It is used in many vacuum applications such as automotive glass coatings, photovoltaic cell fabrication, battery fabrication, and decorative and corrosion resistant coatings.
    AEM can provide pure Chromium products as well as Chromium sputtering target with high quality and competitive prices.

    Specification

    Material Chromium
    Molecular Weight 52
    Appearance Silvery
    Melting Point 1857 °C
    Boiling Point 2672 °C
    Density 7.18 g/cm3
    Electrical Resistivity 12.9 microhm-cm @ 0 °C
    Electronegativity 1.6 Paulings
    Heat of Fusion 3.66 Cal/gm mole
    Heat of Vaporization 72.97 K-cal/gm atom at 2672 °C
    Poisson's Ratio 0.21
    Specific Heat 0.107 Cal/g/K @ 25 °C
    Tensile Strength N/A
    Thermal Conductivity 0.939 W/cm/K @ 298.2 K
    Thermal Expansion (25 °C) 4.9 µm·m-1·K-1
    Sputter DC
    Type of Bond Indium, Elastomer

    Purity & Size

    Purity: 99.95%
    Shape: planar, rotary, costom sizes

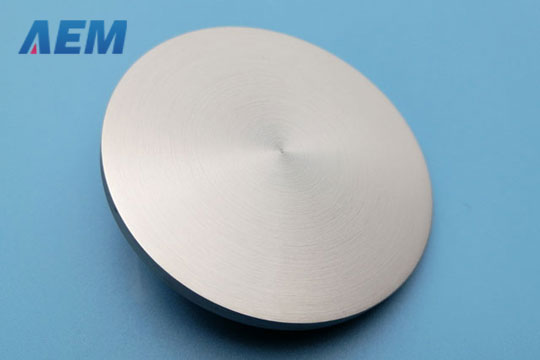

    Circular: Diameter <= 14inch, Thickness >= 1mm
    Block: Length <= 32inch,  Width <= 12inch, Thickness >= 1mm.

    Application

    1. Electronics
    2. Semiconductor
    3. Flat panel displays
