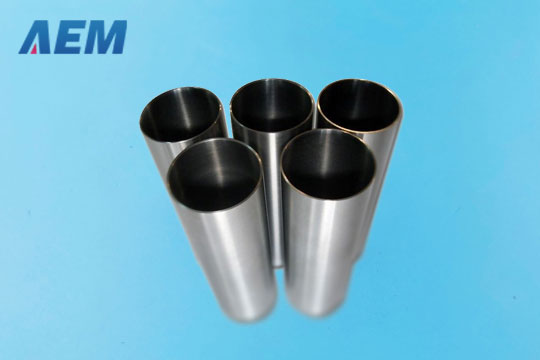

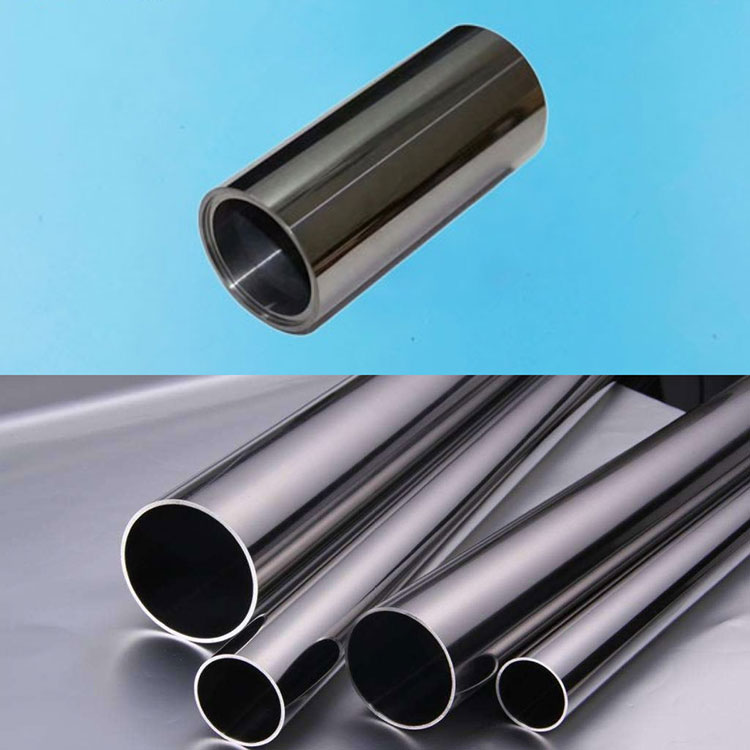

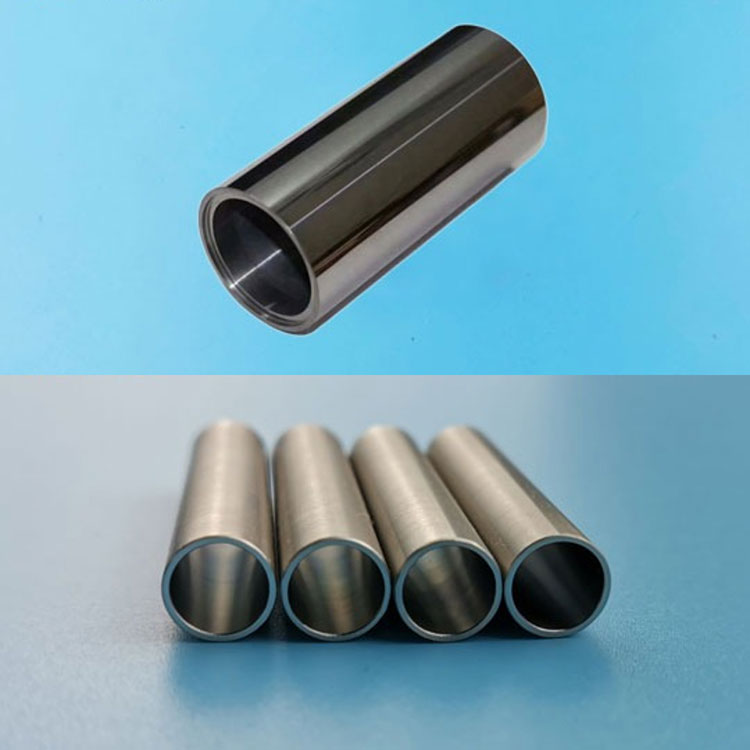

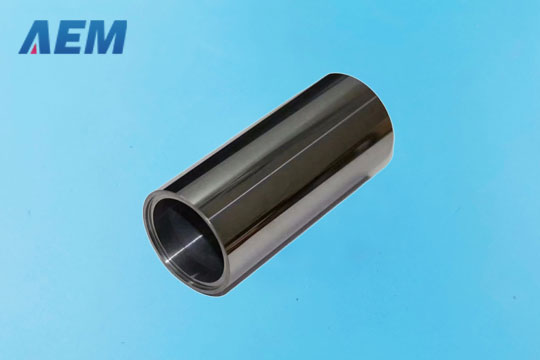

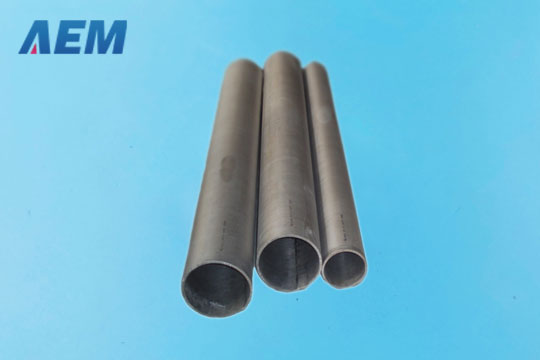

Zirconium Tube & Pipe

Premium Zirconium Tube for Superior Performance

Welcome to AEM METAL! We're experts in making top-quality zirconium tubes. Our commitment to quality comes from our strong values and constant pursuit of perfection. We know zirconium tubes are vital, and we're here to meet the highest standards.

Explore endless possibilities with our exceptional zirconium tubes at AEM METAL. We use cutting-edge technology to make durable and precise tubes. No matter your industry, we've got you covered. On this page, discover our product details, technical details, and real-world applications. AEM METAL is the trusted choice for excellent zirconium tube solutions. Join us on this journey!

Specifications of Zirconium Tube

Technique	Zirconium welded tube, zirconium seamless tube
Grade	R60702, R60704, R60705
Standard	ASTM B523, ASTM B353, ASTM B658
Size	OD(0.5-200)mmWT(0.1-20)mmL(MAX 20000)mm
Shape	Round, square
Surface	Polished or according to customer’s requirement
Processing	Hot rolling, cold rolling, drawing, extruding

Chemical Composition of Zirconium Tube

Grade	Element Composition (%) <
Grade	Zr+Hf	Hf	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5	0.2	--	0.005	0.025	0.05	--	0.16
R60704	97.5	4.5	0.20~0.40	1.0~2.0	0.005	0.025	0.05	--	0.18
R60705	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18

Mechanical Properties of Zirconium Tube

Material	State	Rm (≥)/MPa	Rp0.2 (≥)/MPa	A50mm (≥)/%
Zirconium 702	Annealed	379	207	16
(UNS R60702)	Annealed	379	207	16
Zirconium 704	Annealed	413	241	14
(UNS R60704)	Annealed	413	241	14
Zirconium 705	Annealed	552	379	16
(UNS R60705)	Annealed	552	379	16

Zirconium Tube Fittings Product Forms

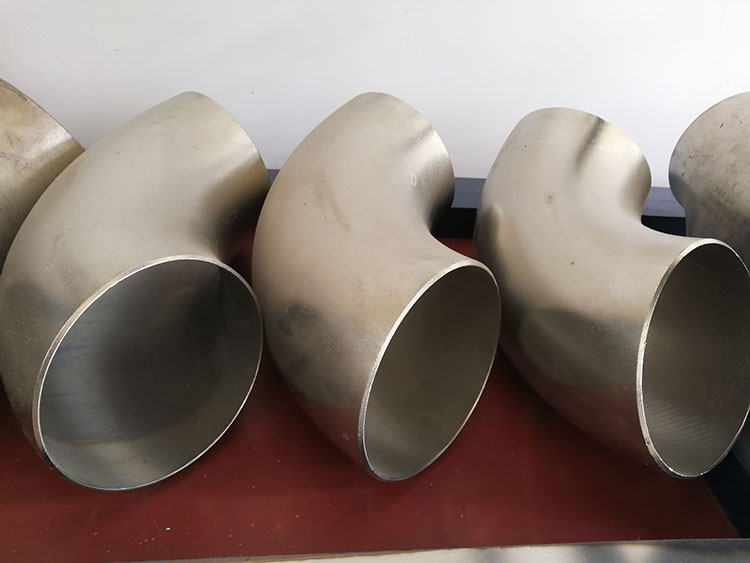

Zirconium Elbows

Zirconium Returns

Zirconium Reducing Tees

Zirconium Concentric Reducers

Zirconium Reducers

Zirconium Couplings

Why Choose AEM METAL Zirconium Tube-Our Advantages

Unparalleled Quality

Our zirconium tubes are crafted with precision and adhere to the highest quality standards, ensuring durability and reliability in every application.

Cutting-edge Technology

We use the latest tube manufacturing technologies to ensure our products lead in innovation and deliver superior performance.

Corrosion Resistance

Our tubes are engineered to resist corrosion, making them ideal for industries where harsh chemical environments are a concern.

High-Temperature Stability

With exceptional thermal stability, our zirconium tubes maintain structural integrity even in high-temperature applications, ensuring consistent performance.

Customized Solutions

Tailored to meet your specific needs, our zirconium tubes are available in a diverse range of sizes and specifications, providing a customized solution for every project.

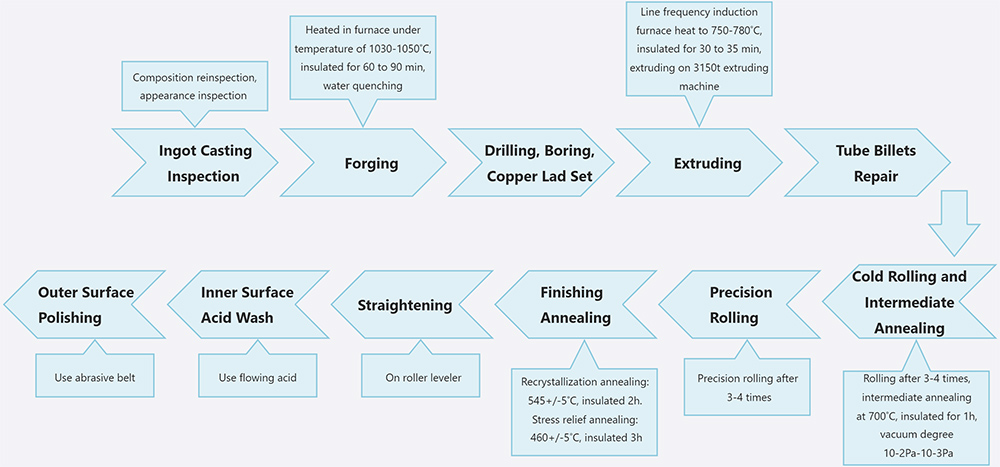

How to Make Zirconium Tube

Quality Assurance of Zirconium Tube: Testing and Certifications

Chemical Composition Analysis

Conduct spectroscopic analysis to verify the zirconium tube's chemical composition, ensuring it meets the specified alloy requirements.

Dimensional Inspection

Employ precise measurements and dimensional checks to confirm that the zirconium tube adheres to the specified dimensions and tolerances.

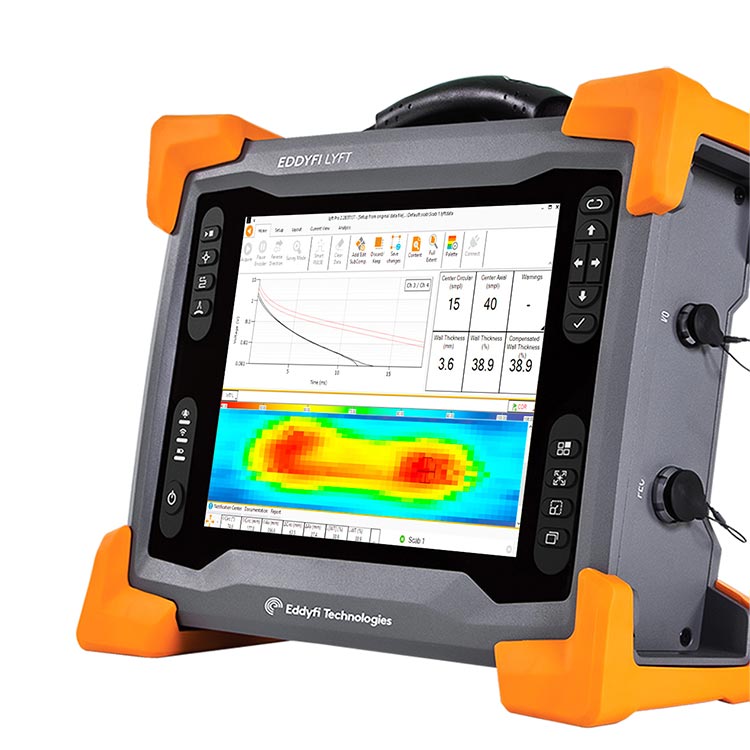

Non-Destructive Testing (NDT)

Utilize NDT methods such as ultrasonic testing, eddy current testing, or radiographic testing to identify internal and surface defects without affecting the tube's integrity.

Heat Treatment Verification

Verify the effectiveness of the heat treatment process by conducting metallurgical examinations to ensure proper grain size and distribution.

Surface Finish Inspection

Evaluate the surface finish through visual inspection and surface profilometry to ensure a smooth and defect-free surface.

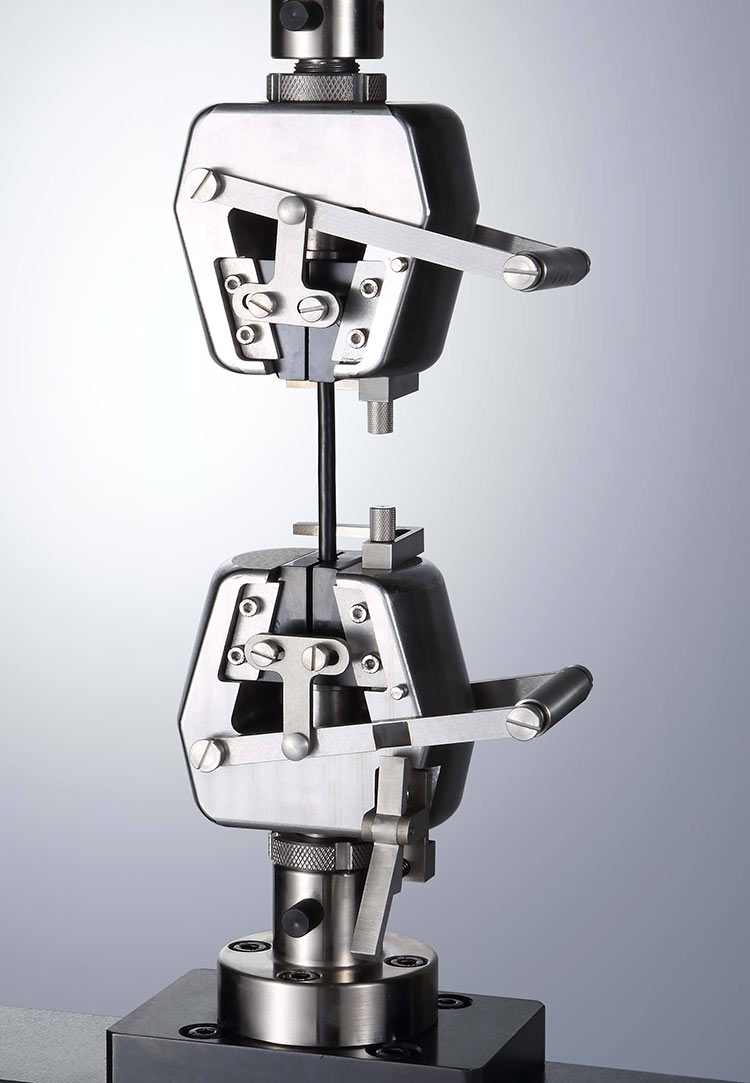

Mechanical Property Testing

Perform tests such as tensile testing, hardness testing, and impact testing to assess the mechanical properties, ensuring the tube meets strength and durability requirements.

Corrosion Resistance Testing

Subject the zirconium tube to corrosion resistance tests, such as salt spray testing, to assess its performance in challenging environments.

Hydrostatic Testing

Conduct hydrostatic tests to evaluate the tube's ability to withstand internal pressure, ensuring it meets safety and performance standards.

Certifications

Obtain relevant certifications and adhere to industry standards to demonstrate compliance with quality requirements. We produce high-quality zirconium (Zr702, Zr704, Zr705), and its alloy (Zr2, Zr4), according to ASTM standards.

Applications Across Industries: Zirconium Tube in Action

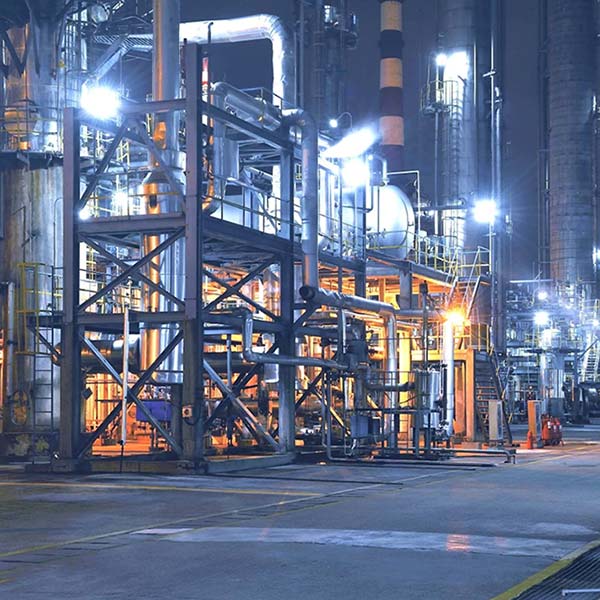

Chemical Processing

Zirconium tubes are widely used in the chemical industry for handling corrosive chemicals and acids. Their resistance to corrosion makes them suitable for reactors, heat exchangers, and other chemical processing equipments.

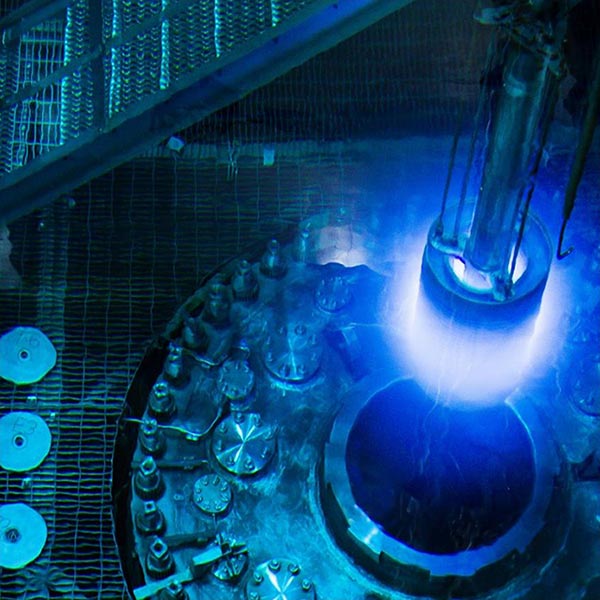

Nuclear Power

Zirconium is a crucial material in nuclear reactors. Zirconium tubes are used in fuel assemblies for their low neutron absorption characteristics, allowing efficient energy production in nuclear power plants.

Aerospace

Zirconium tubes are utilized in aerospace applications, particularly in the manufacturing of components for aircraft engines and other aerospace systems. Their lightweight nature and resistance to high temperatures contribute to their suitability in this industry.

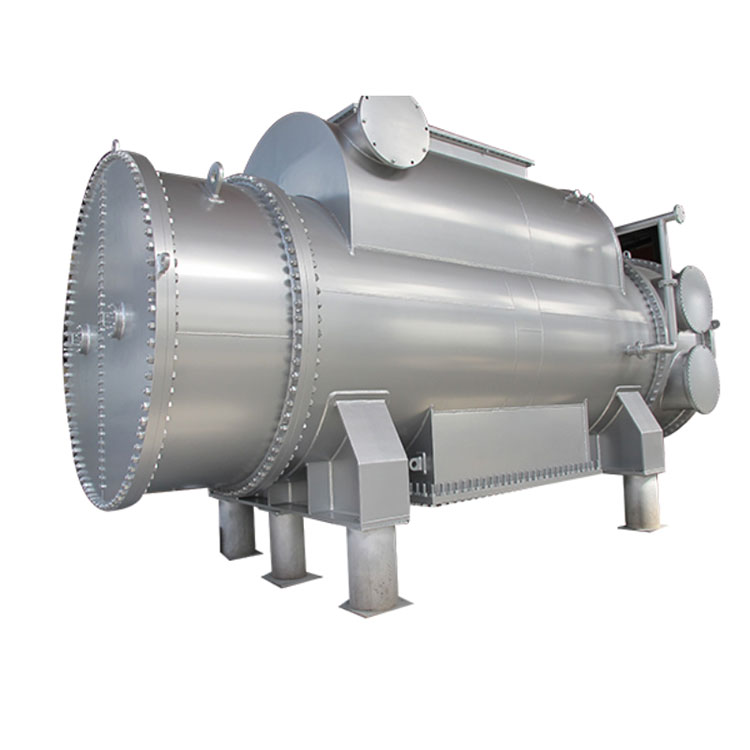

Heat Exchangers and Condensers

Zirconium tubes are commonly used in the construction of heat exchangers and condensers, particularly in industries where resistance to corrosion and high temperatures is crucial.

Offshore Aquaculture

Due to their corrosion resistance and suitability for use in marine environments, zirconium tubes can be used for aquaculture piping systems, desalination units, seawater filtration systems, hydraulic systems and so on.

Marine Industry

Zirconium tubes are used for the manufacture of corrosion-resistant structural components in offshore engineering equipment and ships. The excellent corrosion resistance of zirconium alloys makes zirconium tubes an ideal material for use in seawater, which contains a large amount of salts and chlorides that are extremely corrosive to metallic materials.

Send inquiry Now

How Zirconium Tube Outperforms Its Competitors

Several materials compete with zirconium tubes in various applications, each offering specific advantages.

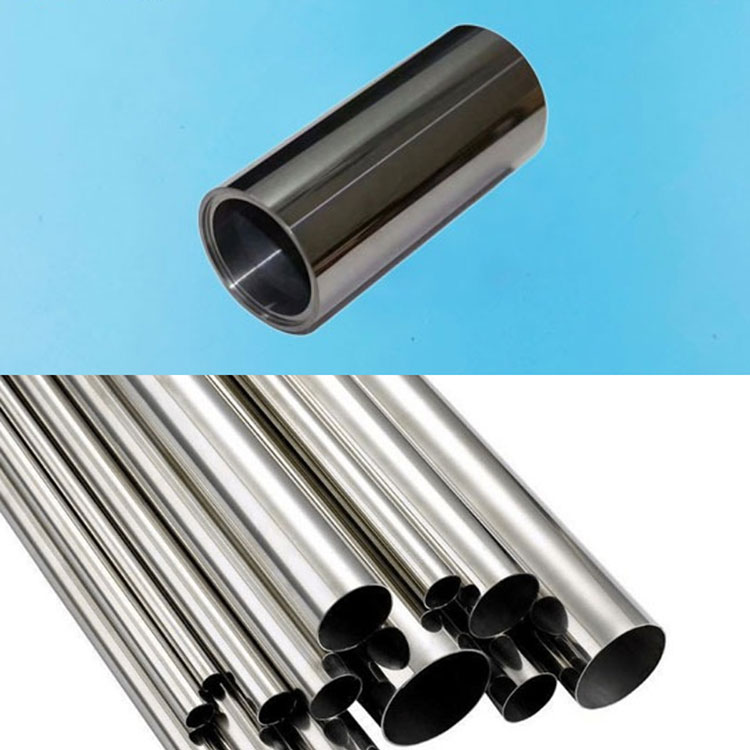

Zirconium Tubes vs. Stainless Steel Tubes:

Stainless Steel Tubes: Stainless steel is commonly used in corrosive environments.

Advantages of Zirconium Tubes:

Superior Corrosion Resistance: Zirconium tubes outperform stainless steel in aggressive chemical environments. High-Temperature Stability: Zirconium tubes maintain structural integrity in high-temperature applications better than stainless steel.

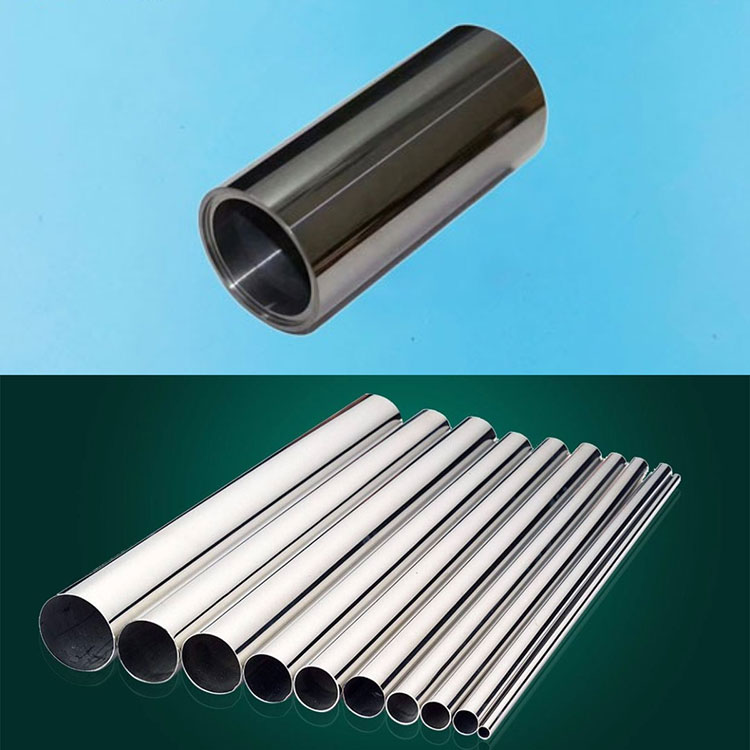

Zirconium Tubes vs. Titanium Tubes:

Titanium Tubes: Titanium is known for its corrosion resistance.

Advantages of Zirconium Tubes:

Broader Chemical Compatibility: Zirconium tubes demonstrate superior corrosion resistance across a wider range of aggressive substances. Better Acid Resistance: Zirconium tubes excel in resisting certain acids, making them preferable in specific chemical applications.

Zirconium Tubes vs. Hastelloy Tubes:

Hastelloy Tubes: Hastelloy alloys are corrosion-resistant and used in chemical processing.

Advantages of Zirconium Tubes:

Comprehensive Corrosion Resistance: Zirconium tubes offer excellent resistance to a diverse array of aggressive chemicals. Resistance to Strong Acids: Zirconium tubes outperform Hastelloy in resisting corrosion from strong acids.

Zirconium Tubes vs. Inconel Tubes:

Inconel Tubes: Inconel is known for its high-temperature resistance and corrosion resistance.

Advantages of Zirconium Tubes:

Enhanced Corrosion Resistance: Zirconium tubes demonstrate superior corrosion resistance, particularly in severe chemical conditions. Wider Chemical Compatibility: Zirconium tubes are compatible with a broader range of chemicals compared to Inconel.

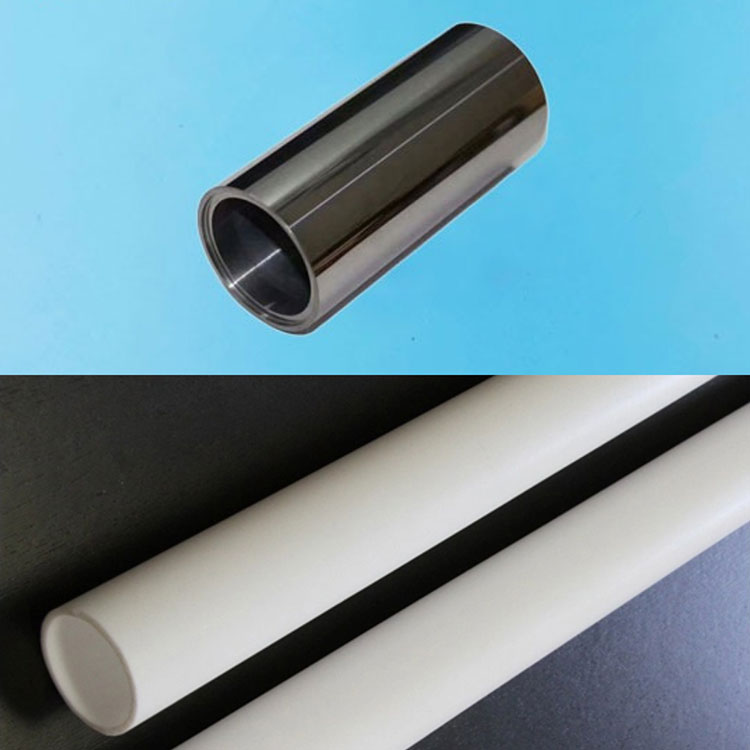

Zirconium Tubes vs. Plastic Tubes (e.g., PTFE):

Plastic (e.g., PTFE) Tubes: Plastic tubes are used in some corrosive environments due to their chemical resistance.

Advantages of Zirconium Tubes:

High-Temperature Stability: Zirconium tubes maintain structural integrity in high-temperature applications, outperforming plastic. Greater Mechanical Strength: Zirconium tubes provide better overall mechanical strength compared to certain plastic materials.

Get A Fast Quote

Frequently Asked Questions About Zirconium Tube

How does zirconium resist corrosion?

Zirconium's corrosion resistance is attributed to its ability to form a protective oxide layer. This oxide layer prevents further reaction with corrosive substances, making zirconium highly resistant to corrosion.
What types of acids can zirconium tubes resist?

Zirconium tubes exhibit resistance to a wide range of acids, including hydrochloric acid, nitric acid, phosphoric acid, sulfuric acid and others. This acid resistance makes them suitable for applications in chemical processing.
Are zirconium tubes suitable for high-pressure applications?

Yes, zirconium tubes can be designed to withstand high-pressure conditions. The tubes undergo hydrostatic testing to evaluate their ability to withstand internal pressure, ensuring their suitability for high-pressure applications.
What surface finishes are applied to zirconium tubes?

Zirconium tubes undergo surface finishing processes such as pickling or passivation. These processes remove oxides and impurities, enhancing corrosion resistance and improving the overall surface quality of the tubes.
Can zirconium tubes be welded, and what welding processes are suitable?

Yes, zirconium tubes can be welded using processes like tungsten inert gas (TIG) welding and electron beam welding. Careful control of welding parameters is essential to maintain the corrosion resistance of the tubes.
How do zirconium tubes contribute to sustainability in industrial applications?

Zirconium's recyclability contributes to sustainability efforts by reducing the demand for new raw materials. Recycling scrap zirconium for tube production helps minimize environmental impact.
What factors should be considered when storing and transporting zirconium tubes?

Zirconium tubes should be stored in a dry environment to prevent oxidation. During transportation, protective measures such as wrapping and cushioning should be employed to avoid damage.
What kind of support or technical assistance is available for customers?

We provide comprehensive technical support, including assistance with material selection, customization guidance, and post-purchase support to ensure customers achieve optimal results with zirconium tubes.
What shipping methods do you use to deliver products?

We typically opt for UPS, DHL, or FedEx. However, for shipments over 100 kg, sea transportation is an option. Feel free to specify your preferred shipping method.
How long does it usually take for goods to be delivered?

Delivery typically takes 3-4 weeks, subject to the product's complexity, quantity, and order volume. Please also understand that if transportation volume accumulates during holidays, the delivery time may be slower.
