    Molybdenum Electrode

    Molybdenum Electrode
  • Molybdenum Electrode
  • Molybdenum Electrode
  • Molybdenum Electrode
    • Request A Quote
    Related materials

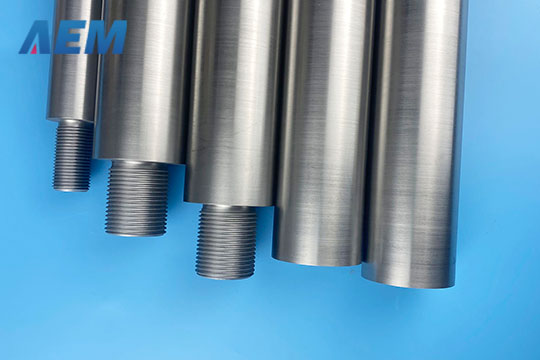

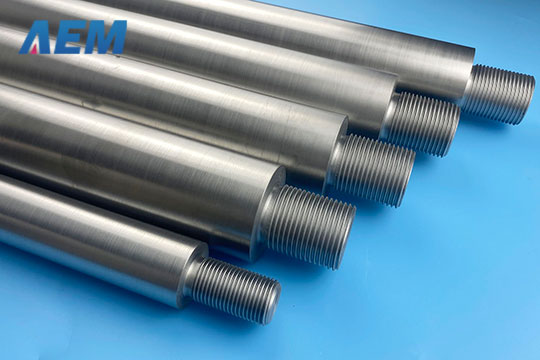

    Molybdenum Electrode

    Molybdenum electrodes are made through isostatic pressing and can be forged to various specifications after sintering and shaping in medium frequency furnaces.
    Standard: ASTM B386
    Material: Mo-1, Mo-2, >99.95%
    Density: >10.15g/cc

    Molybdenum Electrode Applications

    Molybdenum electrode is widely used in daily glass, optical glass, insulation materials, glass fiber, rare earth industry, and glass fiber furnace, glass kiln fore-hearth field because of its excellent properties, such as high strength, oxidation resistance under high-temperature, long service life, and well corrosion resistance.

    Molybdenum Electrode Specifications

    Our molybdenum electrodes are produced by isostatic pressing, sintering in a sintering furnace, then turning, rolling, and forging various types. Molybdenum electrode production is finished by electrolytic polishing.
    Diameter (mm) Length (mm)
    16 ~ 20 300 ~ 1000
    20 ~ 30 250 ~ 1000
    30 ~ 45 200 ~ 1500
    45 ~ 60 250 ~ 2100
    60 ~ 100 250 ~ 1200

    Product Name

    Appearance

    Purity

    Density

    Unite Weight

    Dimension (mm)

    Molybdenum Electrode

    Silver gray metallic luster

    > 99.95%

    >9.8 g/cc

    --

    (14-20)×(14-20)×L, L < 500

    Molybdenum Electrode Plate

    Dark brown. It presents silver gray metallic luster if washed by the alkali

    > 99.95%

    >10.15 g/cc

    <=40 kgs

    (3 - 25)×(50 -500)×L, L < 800

    Molybdenum Electrode Bar

    Bright silver gray metallic luster.

    > 99.93%

    > 10.15 g/cc

    < 70kgs

    (f20 - f100)×L

    Main Specification of Molybdenum Electrode for Glass Melting

    Diameter (mm) Dia Tolerance (mm) M (Cylindrical) Weight (kg/m) Length Tolerance
    31.75 ±0.3 M 22 x 1.5 8.1 ≤1000=±5%
    ＞1000=±50mm
    48 ±0.3 M 22 x 1.5 18.5
    50.8 ±0.4 M 27 x 3 20.7
    54 ±0.4 M 36 x 3 23.4
    63.5 ±0.5 M 36 x 3 32.3
    76.2 ±1.0 M 42 x 3 46.5
    88.9 ±1.0 M 58 x 3 63.3

    Surface Condition of Molybdenum Electrode

    Silver gray metallic luster

    Molybdenum Electrode Hardness

    Hardness for sintered products (HRA): >47
    Hardness for press working products (HRA): >50

    Molybdenum Electrode Package

    Our molybdenum electrodes are wrapped in foam and packaged in plywood cases to ensure safe storage and transportation.

    Related Products of Molybdenum Electrode

    Molybdenum Powder Molybdenum Disulfide Powder Molybdenum Trioxide Powder Molybdenum Boat Molybdenum Electrode
    Molybdenum Mandrel Molybdenum Heating Elements Molybdenum Heating Shields Molybdenum Fasteners Molybdenum Sputtering Target
    TZM Molybdenum Alloy Molybdenum Tungsten Alloy Mo-La Alloy Molybdenum Bar Molybdenum Tube
    Molybdenum Crucible Molybdenum Disc & Square Molybdenum Nozzle Molybdenum Plate Molybdenum Rod
    Molybdenum Sheet Molybdenum Carbide Powder Molybdenum Copper Alloy Molybdenum Rhenium Alloy
