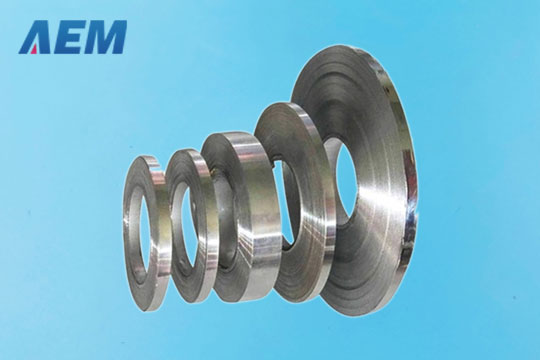

Zirconium Foil & Strip

Zirconium Foil: Reliable Precision for Your Needs

Dive into the world of precision and reliability with our exceptional Zirconium Foil. At AEM METAL, we take pride in offering a diverse range of high-quality zirconium foil products designed to meet the unique needs of your projects. From standard to customized solutions, our commitment to quality shines through every layer.

Explore AEM METAL website to discover the unmatched precision, tailored options, and sustainable practices that make our zirconium foil a trusted choice across industries. Elevate your projects with the assurance of top-notch performance – that's the essence of our Zirconium Foil offerings.

Specifications of Zirconium Foil

Processing	Cold-rolled, annealed
Standard	ASTM B551
Thickness	0.01 mm - 0.5 mm
Width	20 - 500mm
Length	As you require
Grade	R60702, R60704, R60705
Surface	No burr, no oil spots
Technology	Cold-rolled, annealed

Chemical Composition of Zirconium Foil

Grade	Element Composition (%) <
Grade	Zr+Hf	Hf	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5	0.2	--	0.005	0.025	0.05	--	0.16
R60704	97.5	4.5	0.20~0.40	1.0~2.0	0.005	0.025	0.05	--	0.18
R60705	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18

Why Choose AEM METAL Zirconium Foil-Our Advantages

Ultra-Thin Precision:

Experience unmatched precision with our ultra-thin zirconium foil, perfect for even the most detailed projects.

High Purity:

Benefit from zirconium foil with high purity levels, minimizing impurities and ensuring optimal performance in critical applications.

Customization Excellence:

Tailor our zirconium foil to your exact specifications, offering a personalized solution that perfectly aligns with your project requirements.

Exceptional Quality Assurance:

Our zirconium foil undergoes rigorous quality control, ensuring each foil meets the highest standards for precision and performance.

Global Reputation for Reliability:

Industries worldwide trust our zirconium foil for its consistent quality, making us a reliable partner for your projects.

How to Make Zirconium Foils

Melting and Alloying

The zirconium sponge is melted in an induction furnace. Alloying may occur by introducing other elements to achieve specific properties or meet application requirements.

Casting or Rolling

The molten zirconium is either cast into an initial form or passed through a rolling mill to create an initial sheet or strip. This step establishes the basic shape and thickness.

Hot Rolling

The pre-shaped zirconium undergoes hot rolling to gradually thin it out while ensuring uniformity. This process improves the foil's mechanical properties.

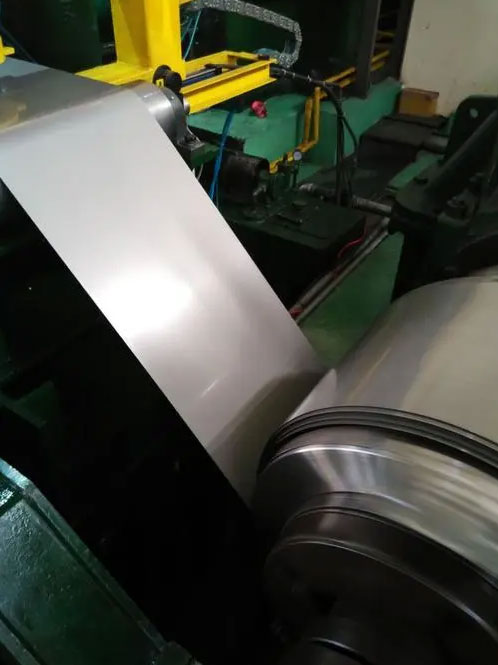

Cold Rolling

The hot-rolled zirconium foil undergoes a series of cold rolling processes to achieve the final desired thickness. Cold rolling refines the surface finish and ensures thickness uniformity.

Annealing

The zirconium foil is then subjected to annealing, a heat treatment process where the material is heated to a specific temperature and then slowly cooled. This relieves internal stresses, improves grain structure, and enhances overall mechanical properties.

Surface Treatment

Depending on the application, the zirconium foil may undergo surface treatments such as polishing, coating, or other processes to enhance specific properties.

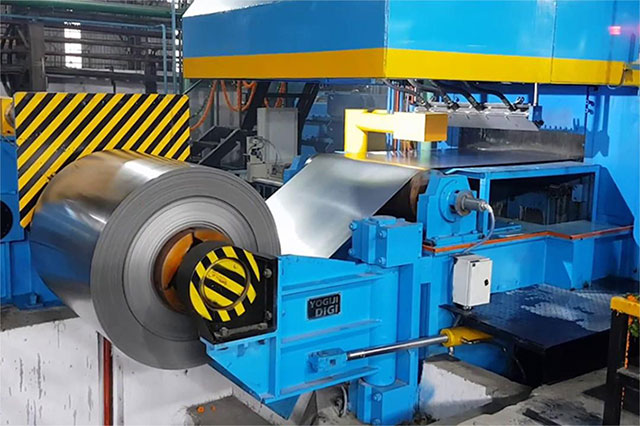

Cutting

The final zirconium foil is cut to the desired dimensions using cutting machines.

Quality Detection of Zirconium Foils

Thickness and Surface Quality

Check for uniform thickness and a smooth, flawless surface. Use tools like calipers or micrometers, and visual aids such as magnifiers or optical microscopes.

Purity and Chemical Analysis

Use spectrometers or chemical analyzers to determine the purity and composition of zirconium, ensuring it meets specified standards.

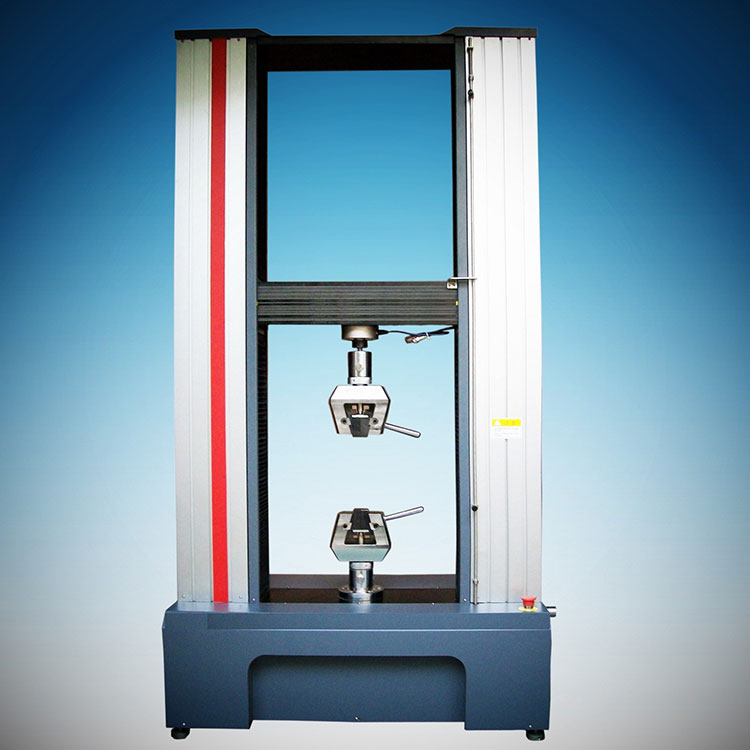

Mechanical Properties

Assess tensile strength, elongation, and microstructure for mechanical reliability. Use tensile testing machines to assess tensile strength and elongation properties.

Corrosion Resistance and Conductivity

Use a corrosion testing device to assess the foil's resistance to corrosive conditions, and employ electrical conductivity meters to evaluate the zirconium foil's electrical properties.

Annealing Effectiveness

Ensure proper annealing to enhance grain structure and reduce stress. Utilize tools like hardness testers to assess the annealing process's effectiveness.

Where Our Zirconium Foil Shines-Diverse Applications

Nuclear Industry

Zirconium foil is vital in nuclear reactors for their corrosion resistance and ability to withstand high temperatures, to protect the fuel from corrosion and ensure its integrity.

Aerospace

Zirconium foil, due to its lightweight and high corrosion resistance, is widely used in aerospace components such as aircraft frames, engine parts, and heat shields, making it the perfect material for these rigorous applications.

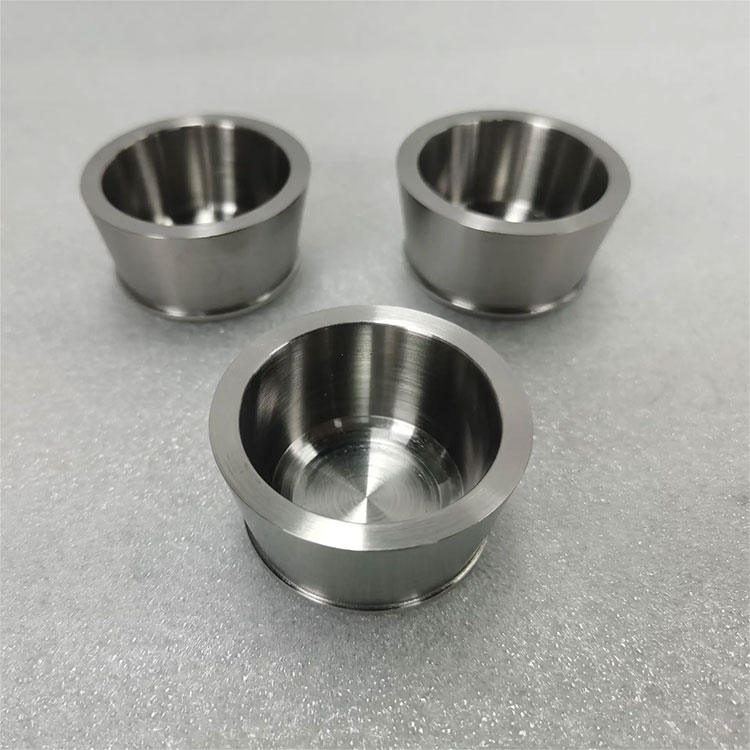

Chemical Processing

Zirconium foil, with its high resistance to chemicals, acids, and alkalis, is an invaluable resource for chemical processing equipment, lab crucibles, and containers. Its ability to endure harsh environments and corrosive substances without degradation further enhances its value.

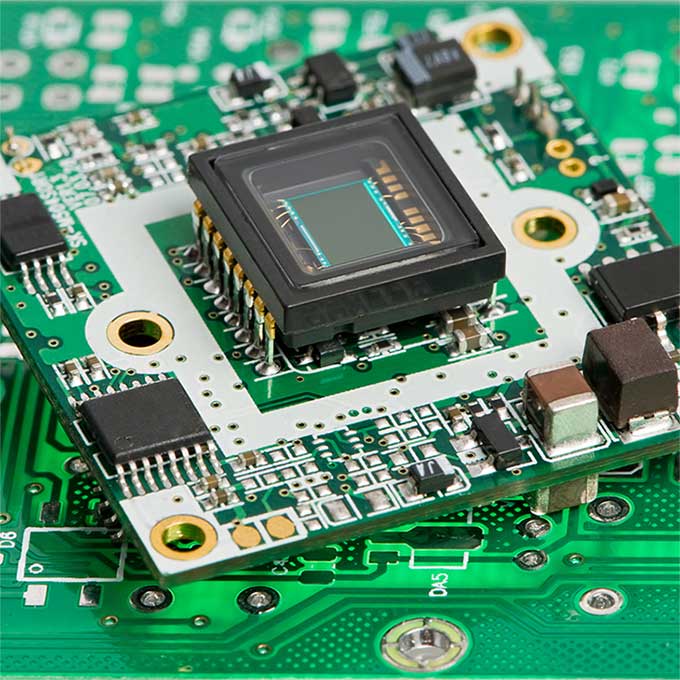

Electronics

Zirconium foil, known for its superior electrical conductivity, is used in electronic components like capacitors, sensors, and electrodes. Its high melting point and thermal stability contribute to the reliability and lifespan of electronic devices.

Medical Devices

Zirconium foil is widely used in the medical field for implants, prosthetics, and medical devices due to its biocompatibility and resistance to body fluids. This makes it ideal for surgical tools and dental applications.

Request A Quote

How Zirconium Foil Outperforms Its Competitors

Zirconium foil could compete with other thin metal foils made from materials like titanium, niobium, tantalum, and stainless steel. Each material has unique properties, with the choice depending on specific application needs. Here's why zirconium foil might be a better option than some of these alternatives:

Corrosion Resistance:

Zirconium foil excels in corrosive environments, offering superior corrosion resistance compared to materials like stainless steel, making it a preferred choice in chemical processing and corrosive applications.

Biocompatibility:

In medical applications, zirconium foil's biocompatibility surpasses some other metals, making it a preferred choice for certain medical devices and implants.

Lightweight Properties:

Zirconium is relatively lightweight, making it a favorable choice in industries where weight is a critical factor. It may outperform materials like stainless steel in specific weight-sensitive applications.

Thermal Stability:

Zirconium foil maintains stability across a wide temperature range, making it suitable for applications in extreme heat or cold conditions. This characteristic may give it an advantage over other materials in certain high-temperature environments.

Electrical Properties:

Zirconium's electrical properties make it suitable for electronic applications where other materials like stainless steel or titanium may not offer comparable conductivity.

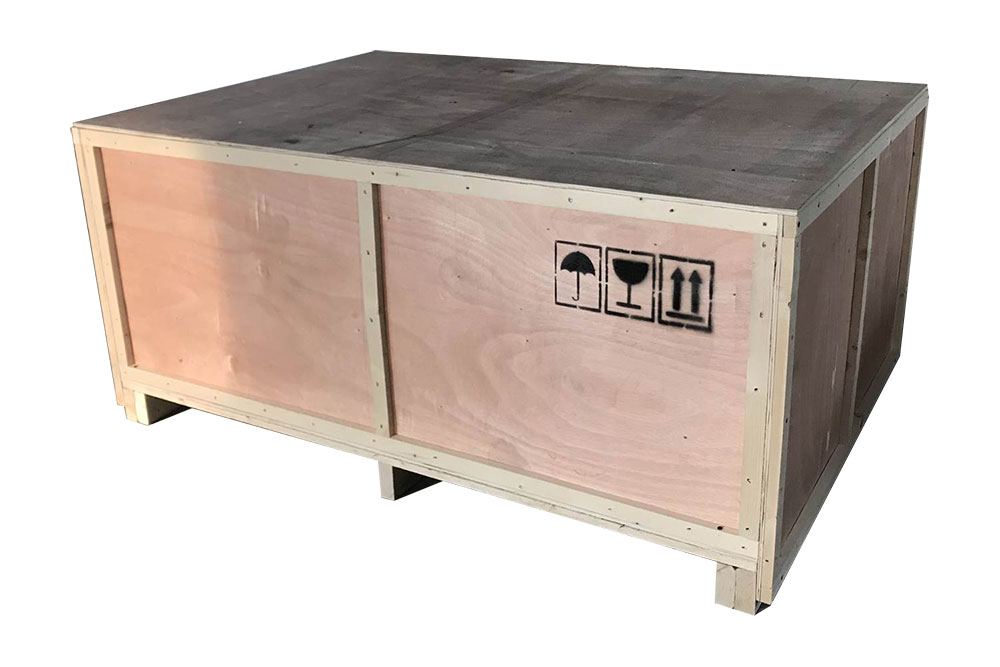

Zirconium Foil Package

Wooden case or according to your requirements. We carefully package, load, and secure all orders personally to confirm the order is safe, protected, and complete.

Frequently Asked Questions About Zirconium Foil

How does zirconium foil perform in high-temperature environments?

Zirconium foil maintains stability across a wide temperature range, making it suitable for high-temperature environments. Its thermal stability is advantageous in applications such as aerospace and nuclear industries.
Can zirconium foil be soldered or welded?

Yes, zirconium foil can be soldered and welded using appropriate techniques. However, it's crucial to consider the specific requirements and compatibility with other materials in the application.
How does zirconium foil handle thermal cycling?

Zirconium foil is known for its stability during thermal cycling, making it suitable for applications where temperature variations occur. The annealing process contributes to its ability to withstand thermal stresses.
What factors should be considered when selecting zirconium foil thickness for a specific application?

Factors such as mechanical requirements, thermal considerations, and the specific needs of the application should be taken into account when selecting the appropriate thickness of zirconium foil.
What shipping methods do you use to deliver products?

We typically opt for UPS, DHL, or FedEx. However, for shipments over 100 kg, sea transportation is an option. Feel free to specify your preferred shipping method.

Can zirconium foil be customized for specific applications?

Yes, zirconium foil can be customized to meet specific application requirements. Customizations may include thickness variations, surface treatments, and other specifications tailored to the customer's needs.
Is zirconium foil resistant to radiation?

Yes, zirconium foil is known for its low neutron absorption and resistance to radiation, making it a preferred material in nuclear applications, including nuclear reactors.
Can zirconium foil be coated for additional protection or aesthetic purposes?

Yes, zirconium foil can be coated with various materials for additional protection against corrosion or for specific aesthetic requirements.
Will you provide service after I purchase the product?

Yes, We will provide thoughtful after-sales service and technical support to solve any problems you encounter when using the product.
How long does it usually take for goods to be delivered?

Delivery typically takes 3-4 weeks, subject to the product's complexity, quantity, and order volume. Please also understand that if transportation volume accumulates during holidays, the delivery time may be slower.
