Niobium C103 Alloy: Properties, Applications & Supply Guide

views, Updated: September 26, 2025 by aemmetal

niobium c103 alloy: properties, applications and supply

Introduction

Niobium C103 is a special alloy made from niobium, hafnium, and titanium. It is well-known for combining light weight, high strength, and excellent heat resistance, making it one of the most popular niobium alloys used in aerospace.

At AEM Metal, we manufacture and supply high-purity refractory metals, including Niobium C103, to customers around the world. Our materials are widely used by aerospace companies, research institutes, and high-tech manufacturers for projects that demand reliable performance under extreme conditions. Whether you need a few pieces for R&D or a full production batch, we deliver precise, consistent, and quality-controlled niobium products.

What is Niobium C103?

Niobium C103 is a niobium-based alloy (about 89% niobium, 10% hafnium, and 1% titanium) designed for space propulsion and other high-temperature applications. It is strong but still easy to work with compared to other refractory metals.

Key points that make C103 popular:

Handles Extreme Heat: Can withstand very high temperatures (melting point ~2468 °C) while keeping its strength.
Easy to Process: Can be forged, rolled, machined, and TIG-welded, making it suitable for custom parts.
Performs at Cryogenic Temperatures: Stays tough and resists cracking even in very cold conditions (down to −150 °C).
Reliable in Harsh Environments: Works well in vacuum and controlled atmospheres, perfect for aerospace and lab use.

Thanks to this mix of high-temperature strength, low weight, and good workability, C103 is often the first choice for rocket nozzles, thrust chambers, satellite parts, and other critical components where failure is not an option.

Key Benefits & Properties of Niobium C103

Niobium C103 is chosen for some of the most demanding projects in aerospace and research because it delivers a rare balance of strength, reliability, and workability. Here are the main reasons engineers and buyers trust this alloy:

High-Temperature Strength

Stays strong and stable at extremely high service temperatures.
Handles intense heat loads without losing shape or mechanical strength — ideal for rocket nozzles and combustion chambers.

Lightweight but Strong

Niobium is the lightest of all refractory metals, which helps reduce overall system weight.
Excellent strength-to-weight ratio makes it perfect for aerospace and launch vehicle designs.

Good Fabrication & Weldability

Easy to forge, roll, machine, and TIG-weld compared to other refractory metals.
Retains mechanical properties after welding, allowing reliable production of complex parts.

Cryogenic & Vibration Resistance

Very low ductile-to-brittle transition temperature (around −150 °C).
Stays tough even in cryogenic environments and resists cracking under vibration — a must for rockets and satellites.

Reliable in Controlled Environments

Works well in vacuum or inert gas conditions with minimal degradation.
Can be coated for long-term use in oxidizing atmospheres.

Typical Applications of Niobium C103

Niobium C103 is trusted in projects where parts must be strong, lightweight, and able to handle extreme heat. Here’s where it is commonly used:

Aerospace & Space Projects

Rocket Nozzles and Thrust Chambers – Survive the extreme heat and pressure of launch.
Steering Nozzles – Help control the rocket’s direction in flight.
Satellite Parts – Reliable material for propulsion and thermal control systems.
Launch Vehicles – Reduces overall weight without sacrificing strength.

Defense & Jet Engines

Missile Nozzles – Work under very high exhaust speeds and temperatures.
Afterburner Flaps – Stay strong even after repeated heating and cooling cycles.
Test Stand Safety Disks – Used in jet engine test facilities for reliable pressure control.

Research & Laboratory Use

High-Temperature Crucibles – Perfect for experiments in vacuum furnaces.
Thermal-Vacuum Test Equipment – Stable under repeated hot and cold cycles.

AEM Metal's Manufacturing & Supply Capability

At AEM Metal, we take pride in making Niobium C103 easy for engineers and buyers to source with confidence. Each batch starts with high-purity raw materials that we melt in a vacuum to keep the chemistry clean and consistent. From there, the alloy is forged and rolled to create a strong, uniform structure, then carefully machined so that every dimension meets your exact requirements.

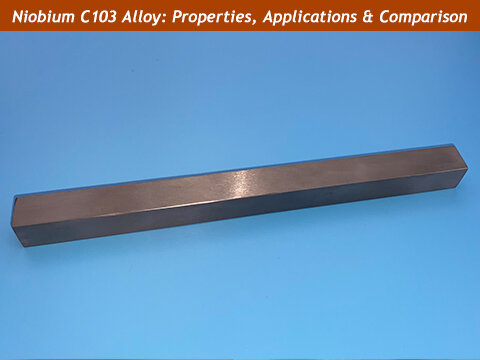

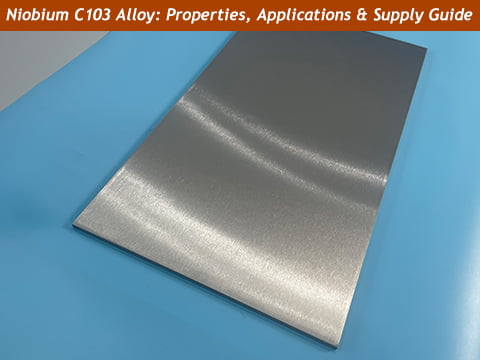

We supply C103 in many forms — sheets and plates for thermal shields, rods and bars for machined parts, and even fully custom components if you need something unique. Whether you’re working on a small R&D project or preparing for full-scale production, we can adjust batch sizes to fit your schedule.

Quality is built into every step. Our team tests the material for composition and dimensions before shipping, and we provide full documentation for aerospace or research projects that require traceability. And because we know timelines are critical, we ship worldwide with fast, reliable delivery so your project can move forward without delay.

Niobium C103 vs Nb521: Which Alloy Fits Your Project?

While Niobium C103 is the most widely used niobium alloy for aerospace, another option — Nb521 (Nb-5W-2Mo-1Zr) — is gaining attention for its higher strength at elevated temperatures. Here's what you need to know when deciding between them.

C103 is well-known for its excellent weldability, good ductility, and ease of forming and machining. That's why it has been the go-to alloy for rocket nozzles, thrust chambers, and satellite components for decades. It offers a reliable balance of performance and manufacturability, making it a safe choice for both new designs and proven systems.

Nb521, on the other hand, was designed for higher strength and creep resistance in extreme heat. Tests show that Nb521 can maintain nearly twice the strength of C103 above 1400 °C and resists steady-state deformation (creep) much better under constant load. This makes it attractive for next-generation propulsion systems that face longer or hotter operating cycles.

However, these advantages come with trade-offs. Nb521 is more challenging to form, forge, and machine compared to C103, and it requires tighter process controls to avoid brittleness. This can increase manufacturing complexity and cost.

Property	Niobium C103	Nb521
Composition	~89% Nb, 10% Hf, 1% Ti	Nb + 5% W, 2% Mo, 1% Zr
High-Temperature Strength	Excellent — proven up to 1370 °C	Superior — retains much higher strength above 1400 °C
Creep Resistance	Good for short-duration service	Much better for long-duration, high-heat exposure
Weldability	Easy to TIG-weld, maintains properties after welding	Weldable but requires tighter process control
Fabricability	Easier to forge, roll, and machine	More difficult to form; may increase manufacturing cost
Applications	Rocket nozzles, thrust chambers, satellites, thermal shields	Advanced propulsion systems, longer burn engines, hypersonic applications

Why Choose AEM Metal

Niobium C103 is one of the most versatile and reliable niobium alloys for aerospace, defense, and high-temperature research projects. Its combination of extreme heat resistance, strength-to-weight ratio, weldability, and cryogenic toughness makes it a material that engineers can trust for critical components like rocket nozzles, satellite parts, and thermal shields.

At AEM Metal, we bring together advanced production methods, strict quality control, and global logistics support to make sourcing Niobium C103 simple and reliable. Whether you need a small batch for prototype testing or a steady supply for production, we can deliver material that meets your exact specifications — with full traceability and on-time delivery.

If you’re planning your next project, let’s make sure you have the right material to get it done right the first time.
Request a Quote for Niobium C103 or contact our team today to discuss your requirements.
