    Carbide Strips

    Carbide Strips
  • Carbide Strips
    • Request A Quote
    Related materials

    Carbide Strips

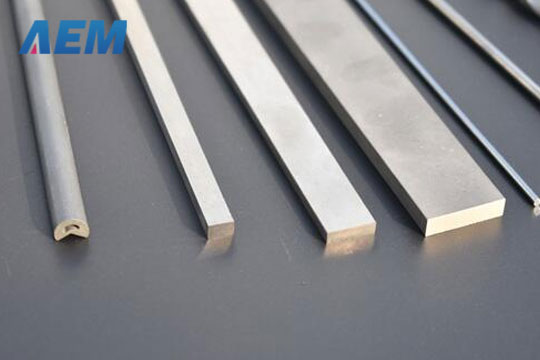

    Carbide strips are referring the rectangular tungsten carbide rod, also known as tungsten carbide flats.It is produced by the same way as carbide rod, through powder(Mainly WC and Co powder as per formula) mixture, ball milling, spray tower drying, extruding, drying, sintering, (and cutting or grinding if necessary) final inspection, packing, then delivery, middle inspection is done after each process to make sure only the qualified products can be moved to next production process.

    Application of Carbide Strip

    1. Woodworking blades.
    2. Cut to small pieces to be welded as cutter blades.
    3. Grinding support plate in grinding machines.
    4. Other applications.

    Cuboid Carbide Strip, Strip Without Chamfer

    Size Thickness
    (mm)    		 ThicknessTol.
    (mm)    		 Width
    (mm)    		 Width Tol.
    (mm)    		 Length
    (+1/+5mm)
    2x4 2 +0.1/+0.3 4 +0.2/+0.4 310
    2x6 2 +0.1/+0.3 6 +0.2/+0.4 310
    2x8 2 +0.1/+0.3 8 +0.2/+0.4 310
    2x10 2 +0.1/+0.3 10 +0.2/+0.4 310
    2x12 2 +0.1/+0.3 12 +0.2/+0.4 310
    2x14 2 +0.1/+0.3 14 +0.2/+0.4 310
    2x16 2 +0.1/+0.3 16 +0.2/+0.4 310
    2x18 2 +0.1/+0.3 18 +0.2/+0.4 310
    3x3 3 +0.1/+0.3 3 +0.2/+0.4 310
    3x4 3 +0.1/+0.3 4 +0.2/+0.4 310
    3x6 3 +0.1/+0.3 6 +0.2/+0.4 310
    3x8 3 +0.1/+0.3 8 +0.2/+0.4 310
    3x10 3 +0.1/+0.3 10 +0.2/+0.4 310
    3x12 3 +0.1/+0.3 12 +0.2/+0.4 310
    3x15 3 +0.1/+0.3 15 +0.2/+0.6 310
    3x20 3 +0.1/+0.3 20 +0.2/+0.6 310
    3x25 3 +0.1/+0.3 25 +0.2/+0.6 310
    4x5 4 +0.1/+0.3 5 +0.2/+0.4 310
    4x6 4 +0.1/+0.3 6 +0.2/+0.4 310
    4x8 4 +0.1/+0.3 8 +0.2/+0.4 310
    4x10 4 +0.1/+0.3 10 +0.2/+0.4 310
    4x12 4 +0.1/+0.3 12 +0.2/+0.4 310
    4x13 4 +0.1/+0.3 13 +0.2/+0.4 310
    4x15 4 +0.1/+0.3 15 +0.2/+0.6 310
    4x16 4 +0.1/+0.3 16 +0.2/+0.6 310
    4x18 4 +0.1/+0.3 18 +0.2/+0.6 310
    4x20 4 +0.1/+0.3 20 +0.2/+0.6 310
    4x25 4 +0.1/+0.3 25 +0.2/+0.6 310
